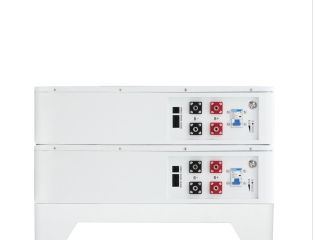

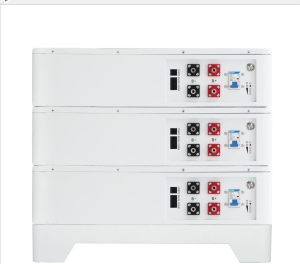

Efficient off-Grid Home Energy Storage Solution for Sustainable Living

Customization:	Available
Cycle Life:	15+Years(25℃/77°F)
Nominal Capacity:	270 Ah

i

Basic Information

Model NO.

WRES-L-25-014

Product Name

Home Energy Storage System

Total Energy

13.82 Kwh

Usable Energy

12.99 Kwh

Nominal Voltage

51.2 Vd.C

Max. Current

200A (Charge/Discharge)

Installation

Wall-Mounted & Stackable

IP Rating

IP20

D

Product Description

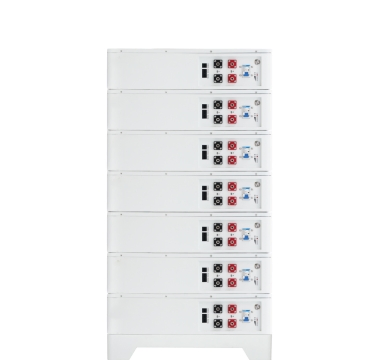

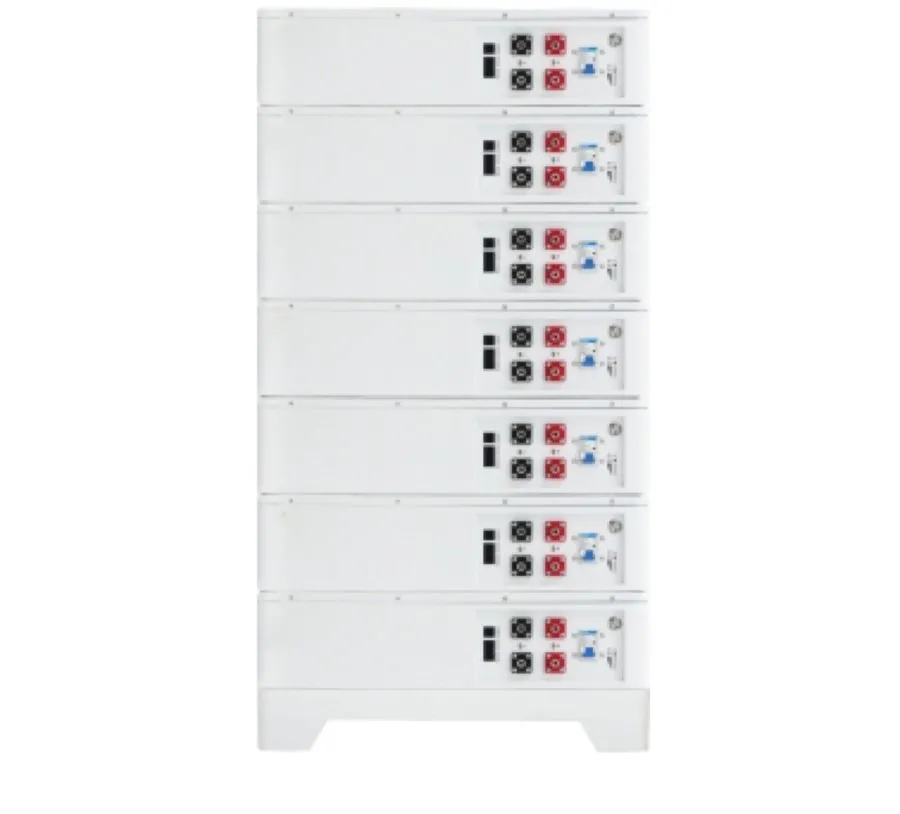

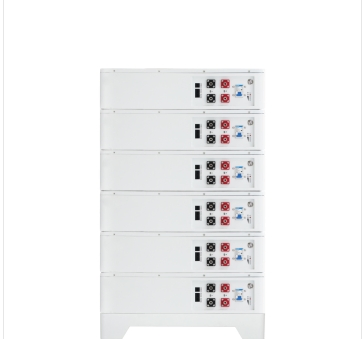

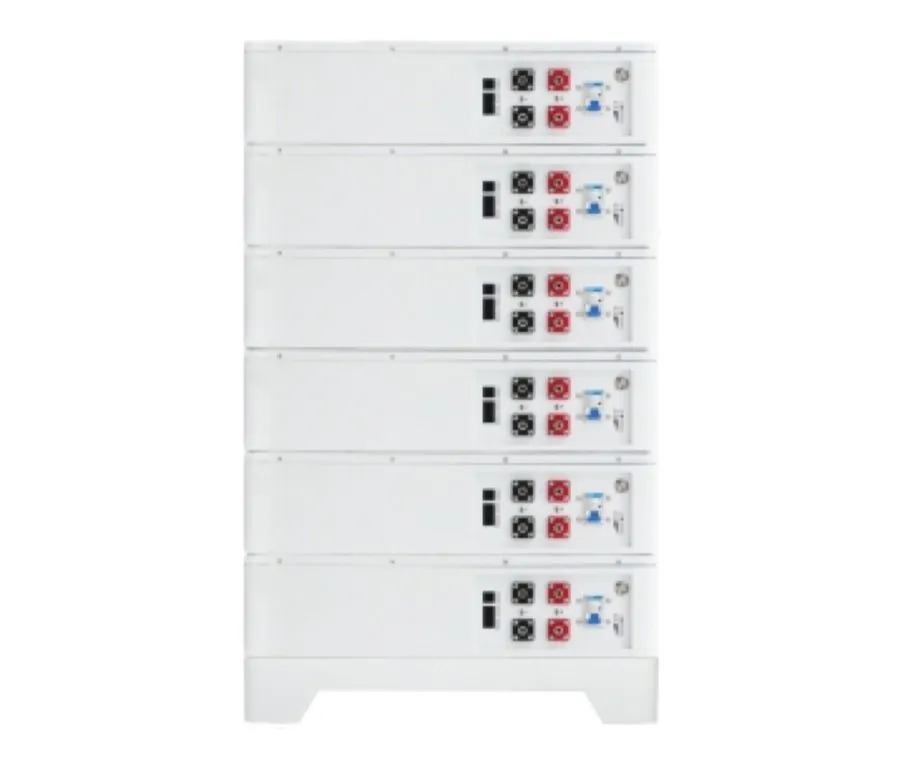

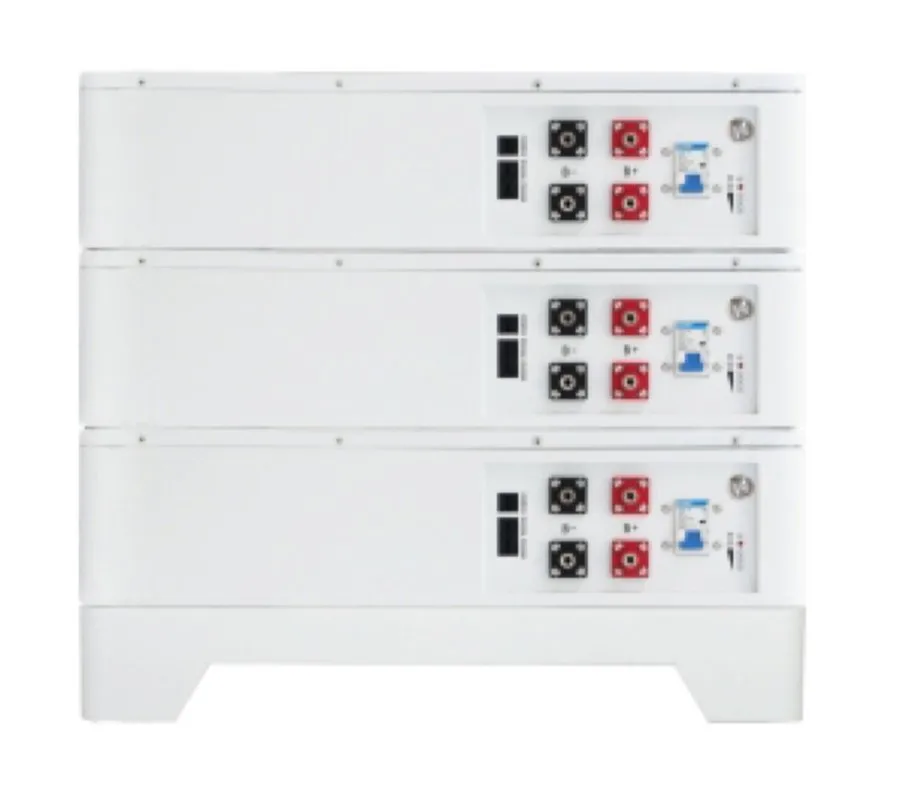

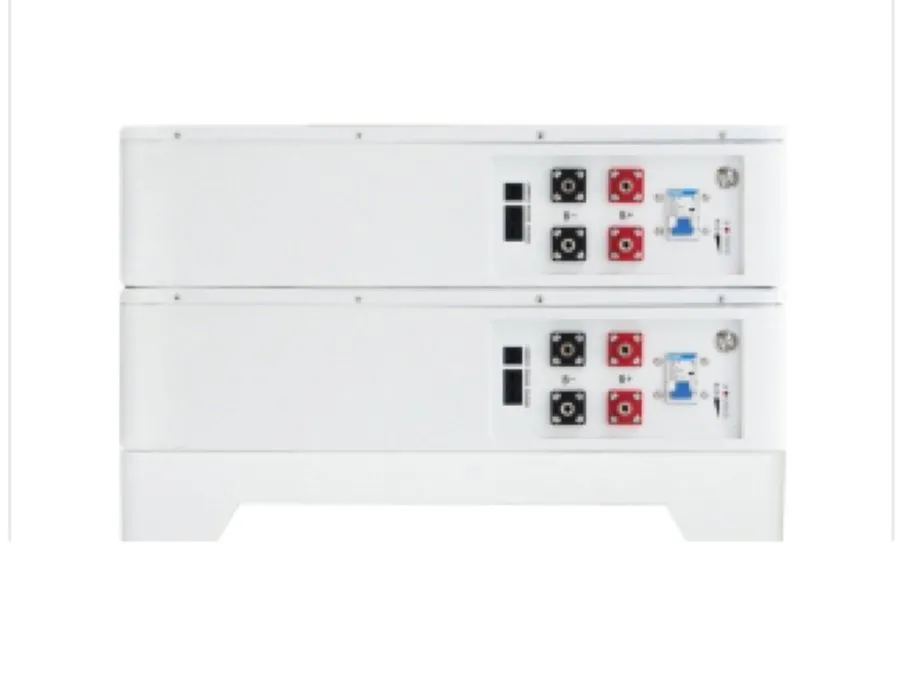

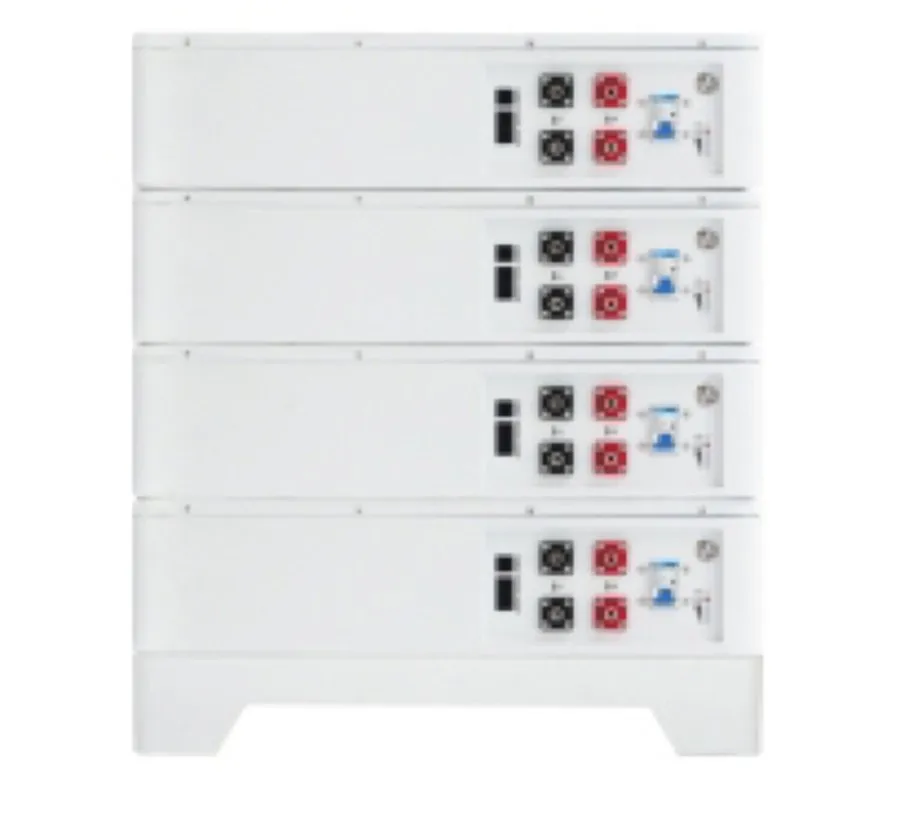

STACKABLE & HIGH-CAPACITY MODULAR BATTERY

Our residential energy storage system is a flexible and efficient solution designed for managing household renewable energy across varied home types and power requirements. It comes in both high-voltage and low-voltage versions, ensuring compatibility with different solar and grid configurations.

Featuring a modular design, the system allows easy capacity expansion from 5 kWh to over 30 kWh by adding battery units. For homes with limited space, it offers wall-mount installation to maximize floor area. Supporting solar, grid-tie, and backup operation modes, it achieves over 95% round-trip efficiency and uses long-life LFP batteries with 8,000+ cycles.

PV Energy Storage: Seamlessly stores surplus electricity generated by rooftop solar panels.

Peak-Valley Arbitrage: Automatically charges during low-tariff hours and discharges during peak times.

Backup Power: Provides immediate emergency power during grid failures.

Smart Monitoring: Real-time tracking via mobile app.

S

Technical Specifications

Parameter	WRES-L-25-014	WRES-L-25-021
Total Energy (kWh)	13.82	20.73
Usable Energy (kWh)	12.99	19.48
Nominal Voltage (V)	51.2	51.2
Rated Capacity (Ah)	270	405
Max. Current (A)	200	300
Dimension (mm)	660404450	660556450
Weight (KG)	138	202
Operation Life	15+ Years	15+ Years

A

Functional Advantages

Residential energy storage (RES) systems offer compelling benefits for homeowners, blending economic value, energy security, and environmental responsibility. By integrating with solar panels, they enable self-consumption and lower electricity bills.

In regions prone to blackouts, our system serves as a reliable backup power source, ensuring the uninterrupted operation of critical appliances like refrigerators and medical devices.

T

Transportation & Logistics

We provide reliable, transparent, and secure transportation services. All products are packed with reinforced, shockproof, and moisture-resistant materials to ensure safe arrival.

?

Frequently Asked Questions

Q1: What is the lifespan of these energy storage batteries? A: Lithium iron phosphate (LFP) batteries typically offer 6,000-8,000 charge cycles, which is equivalent to approximately 10-15 years of daily use depending on maintenance and temperature conditions.

Q2: Are the batteries compatible with my existing solar inverter? A: Yes, our batteries offer high compatibility with various solar inverters using RS485, CAN, or RS232 protocols. They support most major brands like SMA, Growatt, Deye, and Victron.

Q3: Do the battery packs include protective safety features? A: Absolutely. All units come equipped with a comprehensive Battery Management System (BMS) that provides overcharge, over-discharge, short-circuit, and temperature protection.

Q4: How can I monitor the battery performance? A: We provide a cloud-based monitoring platform accessible via mobile App or Web browser, allowing you to track real-time power metrics, charging status, and overall battery health.

Q5: Is specialized knowledge required for installation? A: Yes, installation should be performed by certified professionals to ensure safety and correct integration with your home's electrical system or solar array.

Q6: What application scenarios do these products serve? A: They are ideal for integrated solar-storage systems, peak-valley electricity arbitrage, backup power supply for emergencies, and providing stable energy in remote or low-temperature environments.
