Versatile Plastic Storage Solutions for Home and Office Organization

Customization:	Available
After-sales Service:	Online Service
Warranty:	18 Months

Send Inquiry

Product Description

Basic Information

Type

Injection Blow Molding

Structure

Horizontal

Plastic Type

Thermoplastic

Plasticizing Way

Plunger Type

Clamping Way

Mechanical

Automation

Automatic

Computerized

Certification

CE, ISO9001:2008

Package

Standard Export Package

Specification

6.0*1.6*2.1

Origin

China

HS Code

8477101090

Capacity

5000 PCS/Year

Product Description

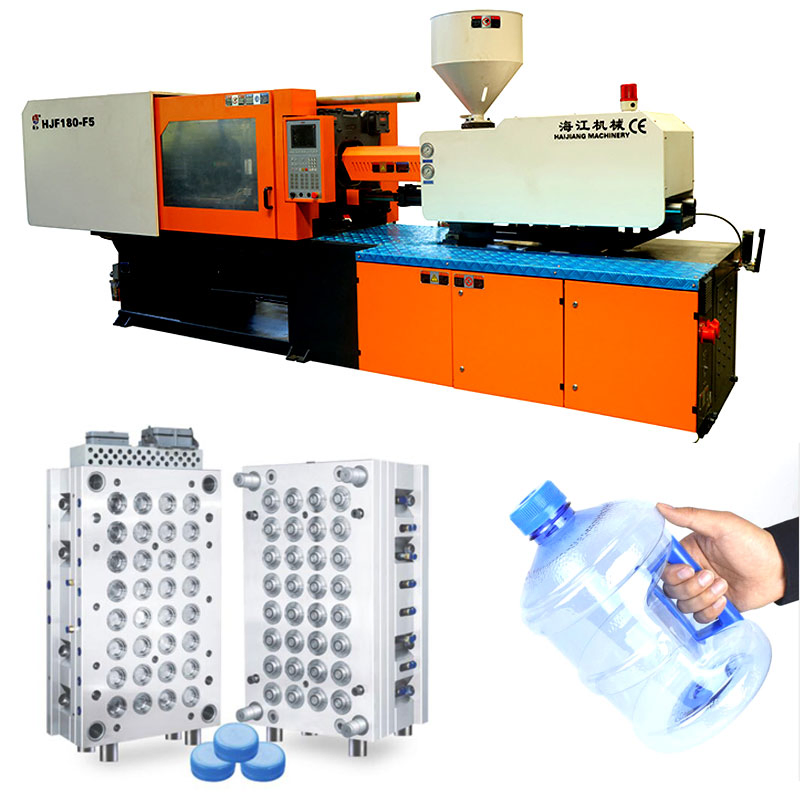

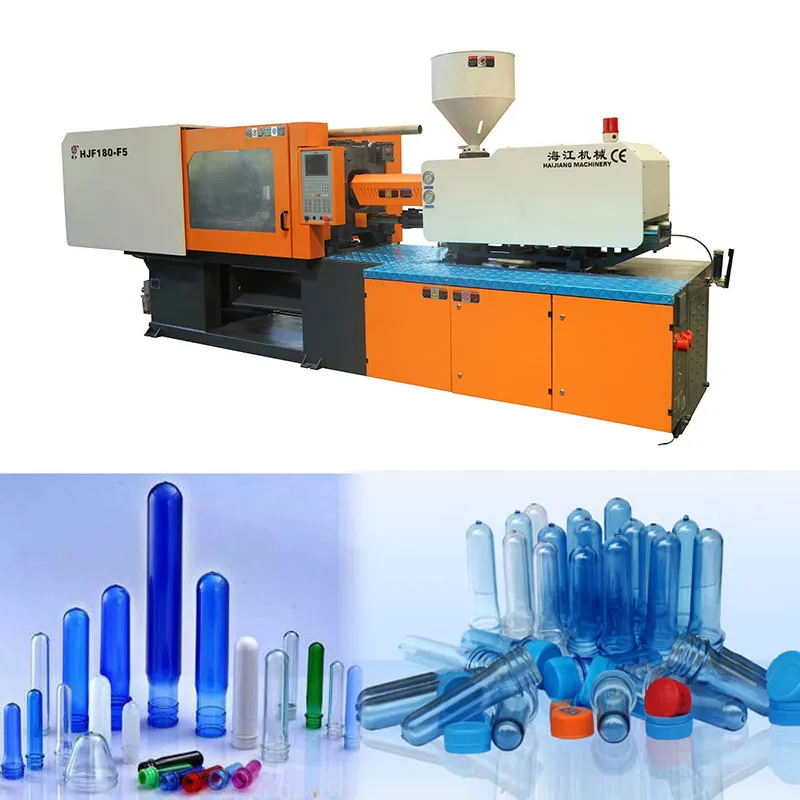

Plastic storage containers for sale Injection Molding Machine

Key Features:

✔ Bigger space between tie-bars

✔ Central-clamping structure

✔ Famous brand components

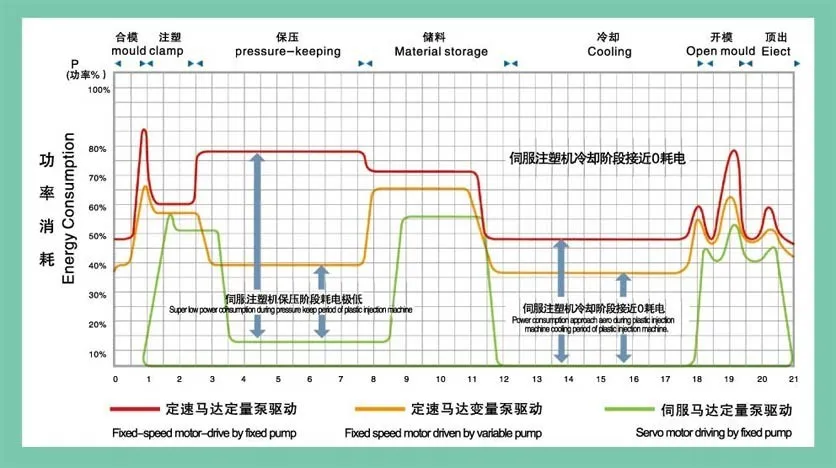

✔ Energy saving with servo motor

✔ Low noise, fast response

✔ High precision and stable long life

✔ T-Slot Platen design

✔ Abundant Spare Parts

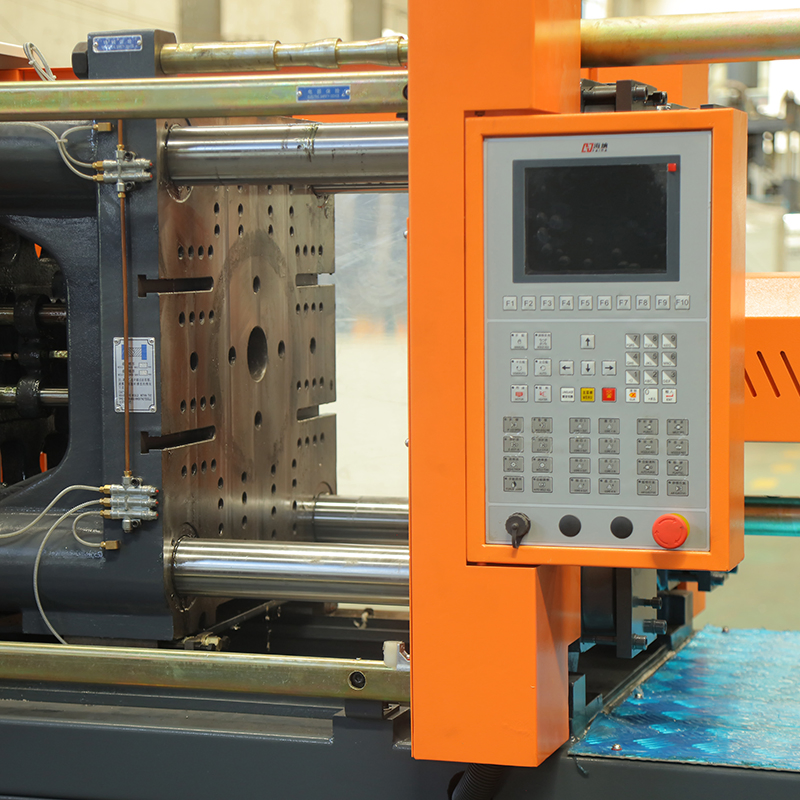

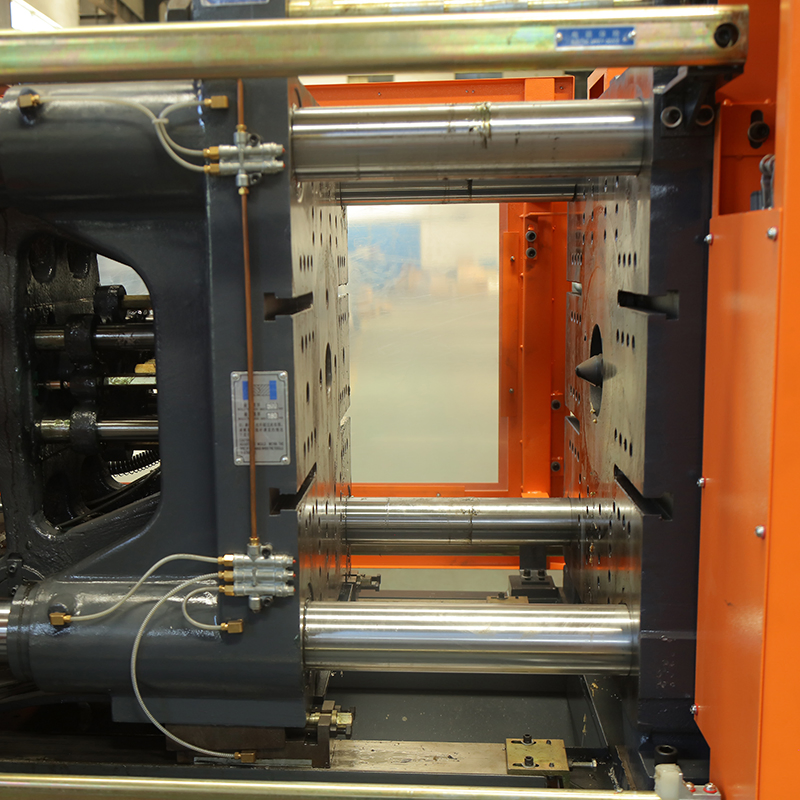

Clamping Unit

Optimized Platen Design with high rigidity and enlarged space between tie bars.
Euromap-based Platen Layout with both T-slot & tap holes.
New ejection system design with longer ejection stroke and better rigidity.
Hydraulic driven gear-type mold height adjustment mechanism.
Relocation of mechanical safety interlock for easier operation.

Injection Unit

High Quality Linear Motion Guide ensures smooth and accurate injection process.
High Speed & Pressure injection structure improves production efficiency.
Twin nozzle cylinder ensures an even and stable structure.
Specialized screw barrel design for various applications.

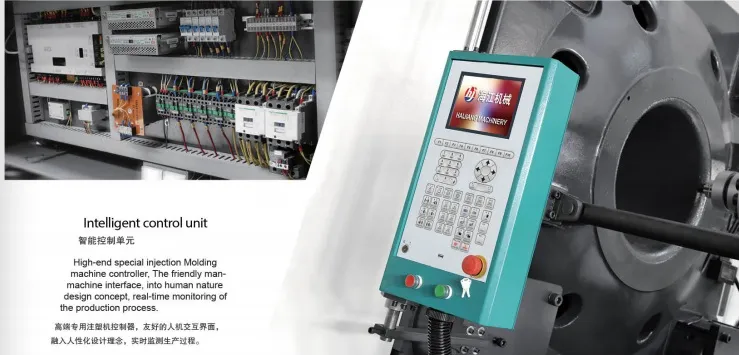

Hydraulic & Electrical System

Advanced control by double CPU, featuring an 8.4" high-resolution display with user-friendly HMI. The system includes imported high-quality pumps for low noise and long lifespan.

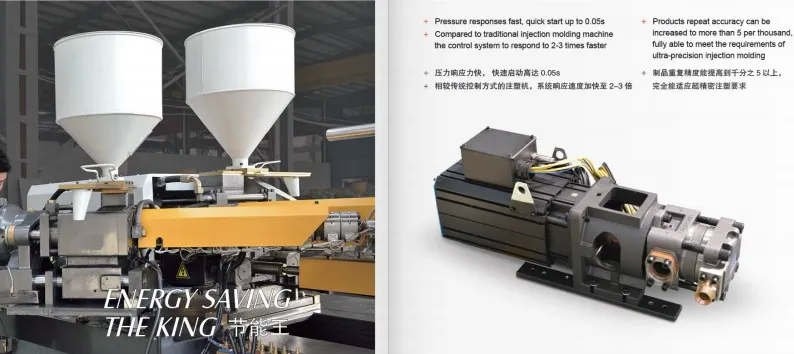

Servo Controller Performance

Technical Parameters

Parameter	Unit	HJF118-F5
Screw diameter	mm	A: 35	B: 38	C: 40
Screw I/D ratio	L/D	23.9	22	20.9
Shot volume (theoretical)	Cm³	154	181	201
Injection weight (PS)	g	141	165	183
Injection rate	g/s	80	95	105
Injection pressure	Mpa	219	186	167
Clamp force	KN	1180
Opening stroke	mm	340
*Space between tie bars (WH)**	mm	370*370
Max mould height	mm	400
Machine weight	T	3.5

Frequently Asked Questions

What is the warranty for the injection molding machine?

The warranty covers a total of 18 months, including the machine platen, base, injection unit, and clamping unit.

Can you provide on-site installation and training?

Yes, we can send engineers to the customer's factory to install the machine and train workers. One week of training is included free of charge.

What spare parts are included with the machine?

Spare parts include: mould clamps, long and short nozzles, heating bands, wrenches, switches, thermocouples, operation manual, tool box, sealing, and filters.

Is the computer system available in multiple languages?

Yes, the system supports English, French, Spanish, Arabic, Russian, Japanese, and Korean. Please specify your language requirement when ordering.

Can the power source be customized for our region?

Absolutely. We can adjust the electrical system to meet your local requirements, such as 3 Phase 220V 60HZ.

Is it possible to customize the machine color?

Yes, if you provide a color sample (such as Green), we can customize the machine finish to match your preference.
