⚡ Basic Info.
Control Options
PLC Control
Max Thrust
100n/200n/500n/1000n
Standard Stroke
100mm/300mm/500mm
Voltage
12V/24V/48V/220V/380V
Quality Guarantee
12 Months

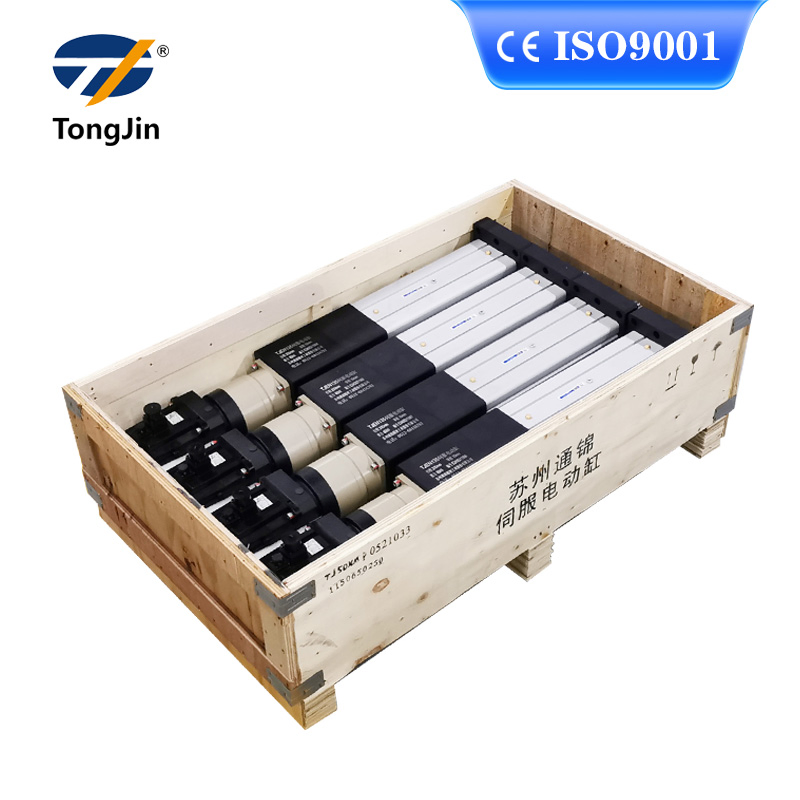

📦 Packaging & Delivery
Package Size
80.00cm * 40.00cm * 30.00cm
📝 Product Description

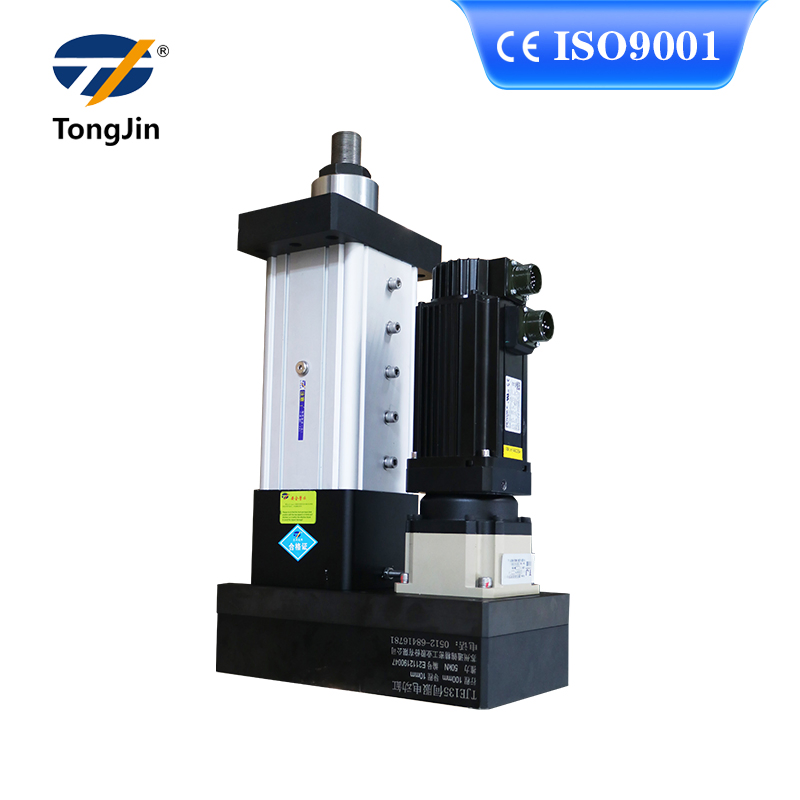

TJEN light load series uses high strength aluminum alloy material, the product adopts lightweight, modular design concept, perfect combination of appearance and performance, thrust range: 0.1kN-50kN, effective stroke up to 2 meters, working 100% speed up to 1250mm/s, high dynamic response time, 20HZ, high acceleration, high rigidity, impact resistance, long life, simple operation and maintenance, low noise special processing, It can be used in high and low temperature environment, and the protection level can reach IP54-IP68.

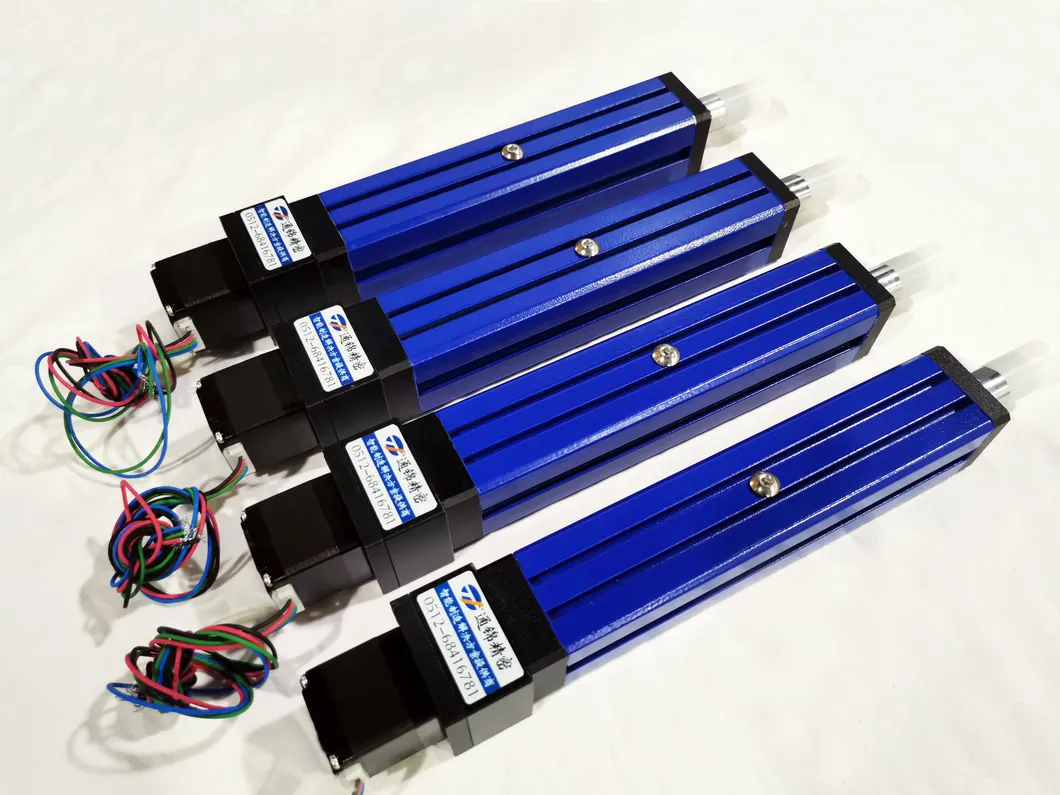

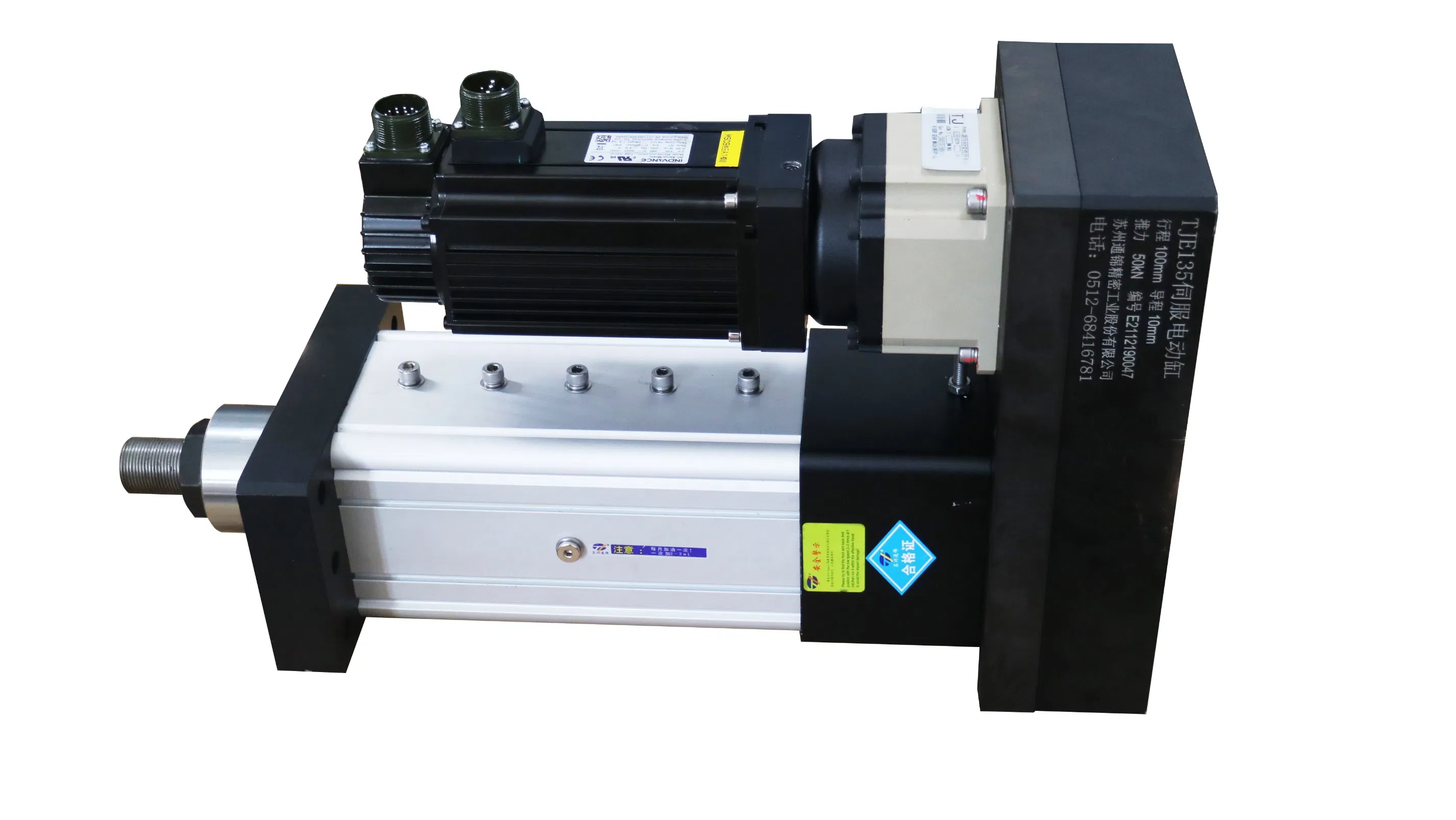

TJEN High Thrust Force Linear Actuator:
- Maximum rated speed reaches 250-1000mm/s
- Effective stroke 10-1500mm
| Screw specification |
2005 |
| Standard motor rated power KW |
0.4 |
0.75 |
| Motor rated torque N·m |
1.27 |
2.39 |
| Reduction ratio |
1 | 1.5 | 2 | 3 | 5 | 10 |
1 | 1.5 | 2 | 3 | 5 |
| Rated thrust kN |
1.44 | 2.15 | 2.87 | 4.31 | 7.18 | 8 |
2.7 | 4.05 | 5.4 | 8 | 8 |
| Rated speed mm/s |
250 | 167 | 125 | 83 | 50 | 25 |
250 | 167 | 125 | 83 | 50 |

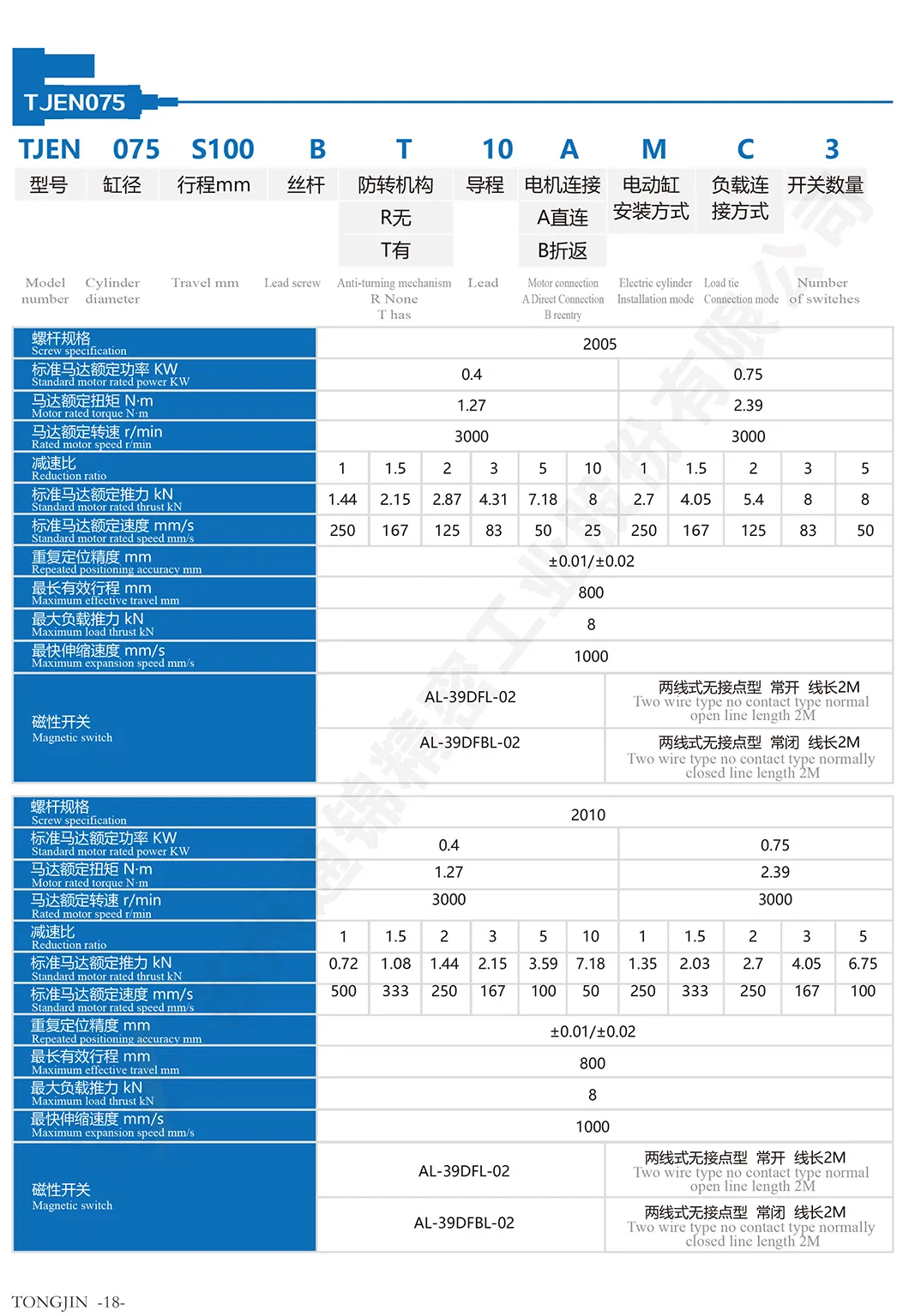

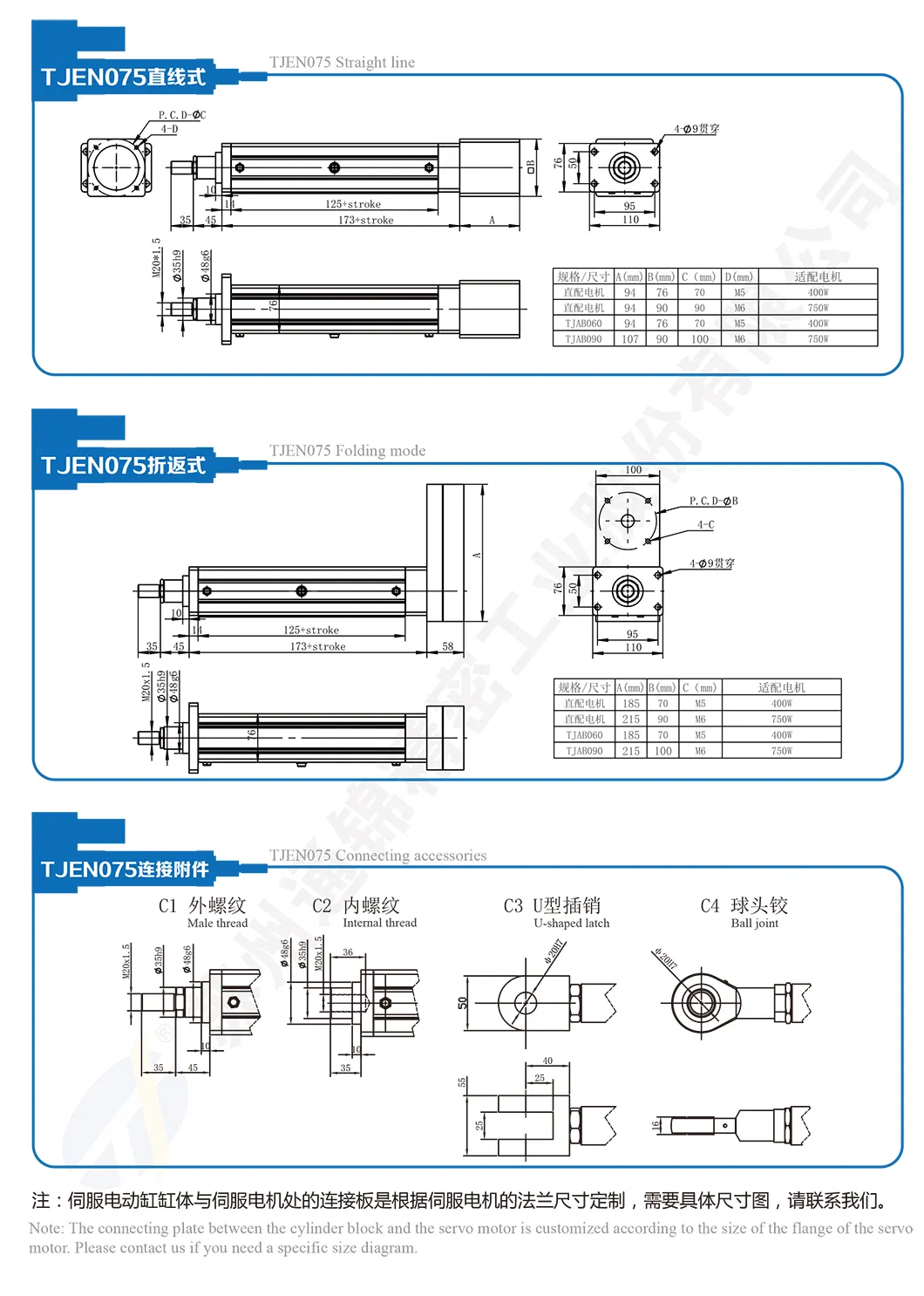

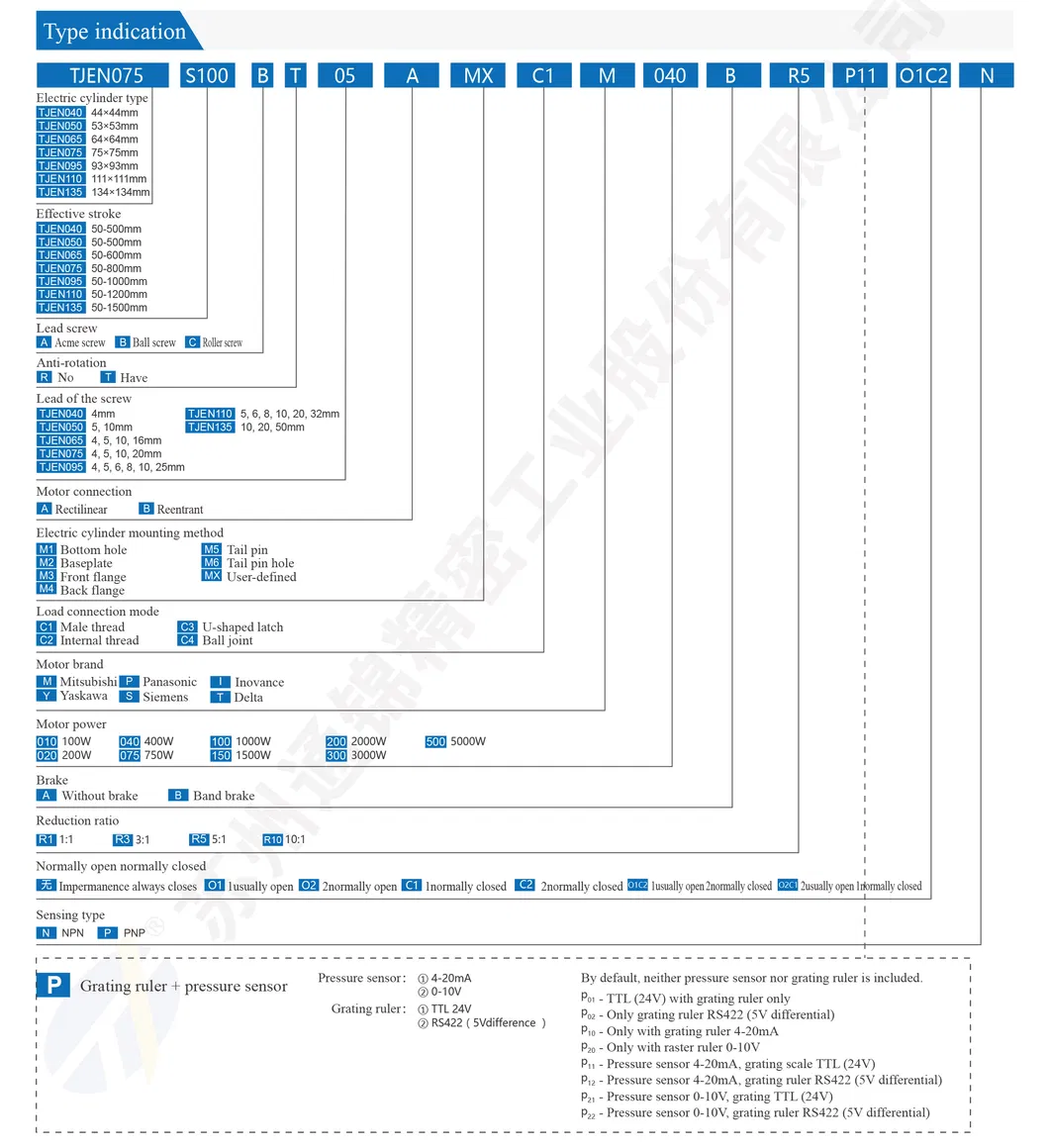

📊 Product Parameters
⭐ Our Advantages
📂 Product Classification
🏢 Company Profile
🏆 Case Presentation
💡 Application Scenarios
🎪 Exhibitions
❓ Frequently Asked Questions
What is the repetition positioning accuracy of the TJEN series?
The TJEN series offers high precision with a repeated positioning accuracy of ±0.01mm to ±0.02mm.
Can the stroke length be customized for specific requirements?
Yes, the standard stroke options are 100mm, 300mm, and 500mm, but effective strokes can be customized up to 2 meters.
What is the protection level for these linear actuators?
The actuators are designed for durability with protection ratings ranging from IP54 up to IP68, making them suitable for harsh environments.
What materials are used in the construction of the actuator?
The TJEN series utilizes high-strength aluminum alloy profiles, ensuring a lightweight yet highly rigid and impact-resistant structure.
What is the maximum thrust capacity of this model?
Depending on the configuration, the maximum load thrust can reach up to 8kN for the standard TJEN light load series models.
Are these actuators compatible with PLC control systems?
Yes, the actuators support various control options including PLC Control for seamless integration into automated industrial lines.
